Introduction to AWS VPC Endpoints

AWS VPC Endpoints are fundamental components for establishing secure and private connectivity within the Amazon Web Services (AWS) cloud environment. These virtual devices enable Amazon VPC instances to communicate privately with supported AWS services or VPC endpoint services powered by AWS PrivateLink, all without requiring public IP addresses for the EC2 instances. A critical aspect of this technology is that the network traffic between an Amazon VPC and an AWS service remains entirely within the Amazon network. This isolation from the public internet is a cornerstone of the enhanced security provided by VPC Endpoints, as it prevents sensitive data from being exposed to potential external threats during transit.

The adoption of VPC Endpoints yields several key benefits for cloud deployments. Firstly, security is significantly enhanced because all traffic stays within the AWS network, thereby reducing the attack surface and the potential for data breaches. VPC Endpoints also facilitate granular control over access through the implementation of security groups and VPC endpoint policies, allowing organizations to define precisely which resources can communicate with specific AWS services. Secondly, performance is improved as VPC Endpoints can lead to reduced latency and increased throughput for data transfer. By avoiding the public internet, traffic takes a more direct and optimized path within the AWS infrastructure, bypassing potential congestion and variable speeds. Lastly, VPC Endpoints contribute to cost optimization. They can decrease data transfer costs that are typically associated with accessing AWS services over the public internet. Notably, Gateway Endpoints for widely used services such as Amazon S3 and Amazon DynamoDB are generally offered without any additional charges.

While offering substantial advantages, VPC Endpoints are not universally applicable and come with certain limitations and considerations. Gateway Endpoints, for instance, have a limited scope and only support Amazon S3 and Amazon DynamoDB. For private connectivity to other AWS services, Interface Endpoints are necessary. However, Interface Endpoints incur hourly charges for each provisioned endpoint and data processing costs based on the volume of data transferred, which must be factored into cost planning. Furthermore, not all AWS services support VPC Endpoints, necessitating verification of service compatibility. VPC Endpoint policies, while providing granular access control, also have some limitations compared to full IAM policies.0

AWS VPC Endpoints are primarily categorized into two types: Interface Endpoints and Gateway Endpoints. Interface Endpoints, powered by AWS PrivateLink, enable private connectivity to a broad spectrum of AWS services, as well as services hosted by other AWS customers and partners, and supported AWS Marketplace partner services. In contrast, Gateway Endpoints are specifically designed to provide private connectivity exclusively to Amazon S3 and Amazon DynamoDB. They achieve this by manipulating route tables within an Amazon VPC, using prefix lists that represent the IP address ranges of these services. A key difference is that Gateway Endpoints do not utilize AWS PrivateLink. The choice between these two types depends on the specific AWS service that needs to be accessed privately, along with considerations for cost and network architecture.

Deep Dive into VPC Endpoint Types

Interface Endpoints (Powered by AWS PrivateLink)

Interface Endpoints leverage AWS PrivateLink to establish private connectivity to a wide range of AWS services. AWS PrivateLink itself offers private connectivity between VPCs, AWS services, and on-premises networks, without the need to expose data to the public internet.6 When an interface endpoint is created, one or more Elastic Network Interfaces (ENIs) are provisioned within a specified subnet. Each ENI is assigned a private IP address from the subnet’s IP address range. These ENIs act as the entry point for traffic destined for the supported AWS service. Applications within the VPC communicate with the private IP address of the endpoint’s ENI. When a resource within the VPC attempts to connect to the public endpoint of an AWS service supported by an interface endpoint, the AWS DNS service resolves the public DNS name to the private IP address of the ENI associated with the interface endpoint within the VPC. This ensures that the traffic is directed to the endpoint within the VPC. Interface Endpoints are secured using security groups, which control the inbound and outbound traffic at the endpoint level. Essentially, Interface Endpoints create a private and direct pathway to AWS services within the VPC’s subnets, making the service appear as if it is a resource within the private network.

Interface Endpoints support a vast number of AWS managed services, as well as services hosted by other AWS customers and partners through AWS PrivateLink (endpoint services), and supported AWS Marketplace partner services. Examples of AWS services that support Interface Endpoints are extensive and include services such as Amazon EC2 API, Amazon ECS, AWS Secrets Manager, AWS Lambda, AWS KMS, Amazon CloudWatch Logs, Amazon ECR, Amazon API Gateway, Amazon Athena, Amazon Aurora, AWS Backup, AWS Batch, Amazon Bedrock, AWS CloudFormation, Amazon CloudWatch, AWS CodeBuild, AWS CodeCommit, Amazon DynamoDB (which also supports Gateway Endpoints), Amazon EFS, Amazon ElastiCache, AWS IAM, Amazon Kinesis Data Streams, AWS Lake Formation, Amazon RDS, Amazon S3 (which also supports Gateway Endpoints), Amazon SNS, Amazon SQS, AWS Step Functions, and AWS Systems Manager (SSM). For a complete and the most current list of supported services, it is recommended to consult the official AWS documentation. The broad support for a diverse set of AWS services makes Interface Endpoints a versatile and valuable tool for establishing secure and private connectivity to a significant portion of the AWS ecosystem, encompassing services critical for compute, storage, databases, security, and management.

Gateway Endpoints

Gateway Endpoints offer connectivity to specific AWS services by adding a route to a VPC route table. This route targets a prefix-list, which contains the public IP address ranges of the AWS service. Unlike Interface Endpoints, Gateway Endpoints do not utilize AWS PrivateLink. When traffic within a VPC is destined for an IP address within the prefix-list of a service associated with a Gateway Endpoint, it is automatically routed to the gateway endpoint instead of the internet gateway. Notably, Gateway Endpoints do not create ENIs within the subnets. The configuration process involves associating the Gateway Endpoint with one or more of the VPC’s route tables. AWS then automatically adds a route to these route tables, directing traffic to the target service. Gateway Endpoints operate at the network routing layer, providing a simplified mechanism for making specific AWS services accessible without the need for ENIs or internet gateways, thus streamlining the network architecture for the limited set of supported services.

Currently, Gateway Endpoints are exclusively available for Amazon Simple Storage Service (S3) and Amazon DynamoDB. They support both the standard AWS Regions and the AWS GovCloud (US) Regions.8 The limited service compatibility is a key characteristic of Gateway Endpoints. However, given the widespread and fundamental use of S3 for object storage and DynamoDB for NoSQL databases in many AWS environments, the availability of Gateway Endpoints for these services offers significant advantages in terms of cost and security. For a large number of applications and workloads on AWS, S3 and DynamoDB serve as critical backend components. The ability to establish private connectivity to these services using cost-free Gateway Endpoints makes them an essential element of cost-optimized and secure AWS infrastructure designs.

Comparative Analysis: Interface Endpoints vs. Gateway Endpoints

Parameter	Interface Endpoint	Gateway Endpoint
Service Support	Wide range of AWS services, including EC2 API, ECS, Lambda, KMS, CloudWatch Logs, ECR, S3, DynamoDB, and more 1	Limited to Amazon S3 and Amazon DynamoDB 1
Underlying Tech	AWS PrivateLink 1	Route table manipulation 1
Cost	Hourly charge per endpoint, data processing costs 8	Generally no additional cost 8
Network Interface	Creates Elastic Network Interfaces (ENIs) in subnets 1	Does not create ENIs 1
Route Table	Does not directly interact (except for DNS resolution) 1	Modifies route tables by adding a route to the service’s prefix list 1
Security	Secured by security groups and VPC endpoint policies 4	Secured by VPC endpoint policies and route table associations 10

The decision between using an Interface Endpoint or a Gateway Endpoint is primarily determined by the specific AWS service that requires private access, along with considerations for cost, network architecture, and the breadth of service support needed. Understanding these fundamental differences is essential for designing a secure, performant, and cost-effective AWS network.

Practical and Real-World Use Cases of AWS VPC Endpoints (Minimum 10 Distinct Examples)

Use Case	AWS Services Involved	Type of Endpoint	Key Benefits
Securely Accessing Amazon S3 from Private Subnets	Amazon S3	Gateway	Cost-free, secure access; data transfer within AWS network; no internet gateway or NAT needed for S3 access.5
Establishing Private Connections to Amazon DynamoDB	Amazon DynamoDB	Gateway	Secure, efficient access; low-latency access without internet exposure; supports compliance for sensitive data.5
Accessing CloudWatch Logs and KMS Without Internet Gateways	CloudWatch Logs, KMS	Interface	Private connectivity to services not supported by Gateway Endpoints; secure logging and encryption operations.8
Enabling Private Connectivity to SaaS Solutions via AWS PrivateLink	Various SaaS providers	Interface	Secure access to third-party services without public internet exposure; enhanced data security and trust.30
Centralized VPC Endpoint Management in Multi-Account AWS Environments	Various AWS services	Interface/Gateway	Reduced administrative overhead and costs; simplified management in multi-account setups.12
Hybrid Cloud Connectivity with AWS Direct Connect and VPC Endpoints	Various AWS services	Interface/Gateway	Securely extend private connectivity from on-premises to AWS services; more reliable than internet-based VPNs.30
Secure and Private Communication Between Microservices within a VPC	Various AWS services	Interface	Enhanced security and isolation between microservices; private communication without internet exposure.30
Meeting Stringent Compliance and Regulatory Requirements	Various AWS services	Interface/Gateway	Ensures private and secure data transfer; crucial for industries like healthcare and finance; facilitates creation of isolated and compliant environments.7
Optimizing Data Transfer Costs for High-Volume Interactions	Amazon S3, DynamoDB	Gateway	Reduces or eliminates internet data transfer costs for high-volume services; cost-effective for frequent data transfers.7
Improving Application Performance by Reducing Network Latency	Various AWS services	Interface/Gateway	Lower latency and higher throughput compared to public internet; crucial for real-time applications requiring fast access to backend services.3

AWS Services Involved in Creating and Managing VPC Endpoints

The creation and management of AWS VPC Endpoints involve several AWS services that provide different interfaces and functionalities.

The Amazon VPC Console offers a user-friendly graphical interface for all aspects of VPC Endpoint management.4 Through this console, users can create new endpoints by selecting the VPC, target AWS service, desired subnets for interface endpoints, security groups, and endpoint policies.7 It also allows for modification of existing endpoints, including adjusting subnet associations, security group attachments, and policy updates.8 The console supports the creation of both Interface and Gateway Endpoints through intuitive workflows.4 This visual approach simplifies the process, making it accessible even for those less familiar with command-line tools.

The AWS Command Line Interface (CLI) provides a powerful set of commands for automating VPC Endpoint management.7 It offers granular control over endpoint configurations and is ideal for scripting and incorporating into infrastructure-as-code (IaC) practices. Commands such as create-vpc-endpoint, describe-vpc-endpoints, modify-vpc-endpoint, and delete-vpc-endpoints enable programmatic interaction with VPC Endpoints.7 This is particularly valuable for automating deployments and integrating endpoint management into DevOps pipelines.

AWS Software Development Kits (SDKs) allow developers to manage VPC Endpoints programmatically using various programming languages.7 This enables the integration of endpoint management into custom applications, automation scripts, and infrastructure management tools.7 The SDKs support a wide range of languages, including Python (Boto3), Java, and.NET, providing flexibility for developers to work within their preferred environment.7

AWS CloudFormation is an Infrastructure as Code (IaC) service that facilitates the definition and deployment of VPC Endpoints using declarative templates written in JSON or YAML. CloudFormation ensures consistent and repeatable deployments of endpoint configurations across different environments and AWS accounts. It also supports version control of infrastructure configurations and promotes collaboration among team members. Both Interface and Gateway Endpoints can be defined and deployed using CloudFormation templates 2, making it a cornerstone for managing VPC Endpoints in a scalable and automated manner.

High-Level Step-by-Step Guide to Creating AWS VPC Endpoints

Before creating an AWS VPC Endpoint, several prerequisites must be in place.7 An existing Amazon VPC with at least one subnet in the desired AWS Region is required. It is also essential to identify the specific AWS service that needs private connectivity. Understanding whether the service supports Interface or Gateway Endpoints (or both) is crucial for choosing the correct endpoint type. For Interface Endpoints, having appropriate security groups configured beforehand is necessary to control traffic flow. If private DNS names are to be used for accessing the service via the endpoint, DNS hostnames and DNS resolution must be enabled for the VPC.7

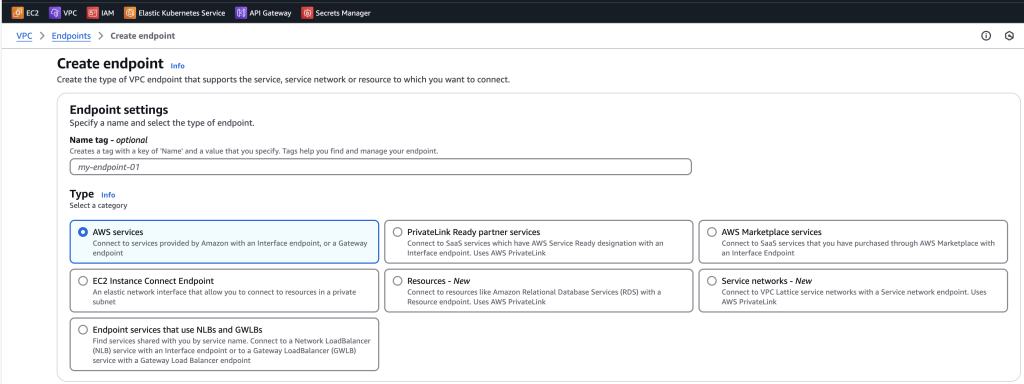

To create an Interface VPC Endpoint, begin by navigating to the Amazon VPC console and selecting Endpoints.7 Click on Create endpoint and choose AWS services as the Type. In the Service name field, search for and select the desired AWS service. Then, choose your VPC from the dropdown menu. In the Subnets section, select the subnets where you want the endpoint network interfaces to be created, ideally one per Availability Zone for high availability. Choose the appropriate IP address type (IPv4, IPv6, or Dualstack) based on your subnet configuration and the service’s support. Select the Security groups to associate with the endpoint network interfaces. Under Policy, choose either Full access or Custom to define the access permissions. Optionally, add tags for better management. Finally, click Create endpoint.7

Creating a Gateway VPC Endpoint follows a slightly different process. From the Amazon VPC console, navigate to Endpoints and click Create endpoint. For Service category, select AWS services. In the Services section, filter by Type = Gateway and choose either the Amazon S3 or Amazon DynamoDB service. Select your VPC. In the Route tables section, select all the route tables that should use this endpoint. AWS will automatically add a route to these tables. Under Policy, choose Full access or Custom to define permissions. Add tags if desired. Finally, click Create endpoint.

Configuring Security Groups and Network Access Control Lists (NACLs) with VPC Endpoints

For Interface Endpoints, security groups are associated with the Elastic Network Interfaces (ENIs) created in the subnets. These security groups act as virtual firewalls, controlling the inbound traffic to the endpoint from resources within the VPC. When configuring rules, the principle of least privilege should be followed, allowing only necessary protocols and ports from specific sources.1 For most services, inbound HTTPS traffic (port 443) is required.9 For instance, if EC2 instances need to access an S3 Interface Endpoint, the endpoint’s security group should allow HTTPS from the instances’ subnet or security group. While security groups are stateful, the source client’s security group must also have outbound rules allowing connectivity to the endpoint’s private IP addresses.6

NACLs provide an optional, stateless security layer at the subnet level, affecting traffic in and out of subnets containing Interface Endpoints.6 Due to their stateless nature, both inbound and outbound rules must be explicitly configured.6 For inbound traffic to the endpoint, the subnet’s NACL should allow traffic on the service port (e.g., HTTPS 443) from the client’s IP range.6 For outbound traffic (return traffic), the NACL should allow traffic to the client’s IP range on ephemeral ports (1024-65535).6 For Gateway Endpoints, NACLs are less directly involved but still apply to the instances accessing the services.

Consider an EC2 instance accessing S3 via a Gateway Endpoint. The instance’s security group needs an outbound HTTPS rule to the S3 IP range (though traffic is routed via the endpoint). The subnet’s NACL needs outbound HTTPS to S3 and inbound HTTPS on ephemeral ports. The Gateway Endpoint itself has no security group. For an EC2 instance accessing CloudWatch Logs via an Interface Endpoint, the instance’s security group needs outbound HTTPS to the endpoint’s IP. The endpoint’s security group needs inbound HTTPS from the instance’s IP. The subnet NACLs need corresponding inbound and outbound rules allowing HTTPS traffic on the service port and ephemeral ports.

Understanding AWS VPC Endpoint Pricing Models

Interface Endpoints are priced based on an hourly charge for each endpoint provisioned in each Availability Zone (AZ) and the volume of data processed through the endpoint.2 Partial hours are billed as full hours.6 The hourly rate varies by AWS Region.6 Data processing costs are also tiered based on the total data processed per month across all Interface Endpoints in an AWS Region.6

Gateway Endpoints for Amazon S3 and Amazon DynamoDB generally do not incur any additional charges, making them a cost-effective solution.

Gateway Load Balancer Endpoints have their own pricing, including an hourly charge per endpoint per AZ and a per-GB charge for data processed.6 Similarly, Resource Endpoints, used for private access to shared VPC resources, have both hourly charges per endpoint and per-GB data processing fees.6

Cross-region connectivity using Interface Endpoints involves standard PrivateLink charges for data processing and hourly usage, as well as standard AWS cross-region data transfer rates.6 Service providers also incur an hourly charge per active remote region.6

Strategies for cost optimization include prioritizing Gateway Endpoints for S3 and DynamoDB, carefully considering the number of Interface Endpoints, monitoring data transfer, and potentially centralizing endpoints in multi-account environments.

Best Practices for Implementing and Managing AWS VPC Endpoints

For security, implementing the principle of least privilege using custom VPC endpoint policies is crucial.0 These policies should restrict access to specific actions and resources on the target AWS service. Without a policy, full access is granted by default.0 Regular review and updates of these policies are necessary.9 Effective monitoring and logging strategies are also vital. Utilize VPC Flow Logs to track traffic to and from endpoint network interfaces 2, use AWS CloudWatch to monitor performance 39, and leverage AWS CloudTrail to log API calls related to endpoint management.9 Regularly audit and update endpoint configurations to ensure they align with current security requirements.9

For cost optimization, strategically select VPC Endpoint types based on service requirements and traffic patterns. Always use Gateway Endpoints for S3 and DynamoDB to avoid costs. Consider centralizing VPC Endpoints in a shared services VPC for multi-account environments to reduce the overall number of endpoints.2 Leverage Gateway Endpoints for S3 and DynamoDB in every VPC where these services are accessed from private subnets to minimize data transfer costs.

Conclusion: Maximizing Security and Efficiency with AWS VPC Endpoints

AWS VPC Endpoints are indispensable for enhancing the security, performance, and cost-efficiency of applications on AWS. Interface and Gateway Endpoints offer distinct advantages and limitations, making their strategic selection crucial. Careful planning, configuration, and ongoing management are essential to maximize their benefits. Adhering to security best practices, such as implementing least privilege with endpoint policies and employing robust monitoring, is paramount. Similarly, cost optimization strategies, including leveraging free Gateway Endpoints and considering centralized architectures, should be employed. By effectively utilizing VPC Endpoints, organizations can build secure, scalable, and cost-efficient cloud solutions tailored to their specific needs.
